Product Center
How can we help you
You can contact us in any convenient way. We provide services 24/7 via email or phone.
Contact Us
-

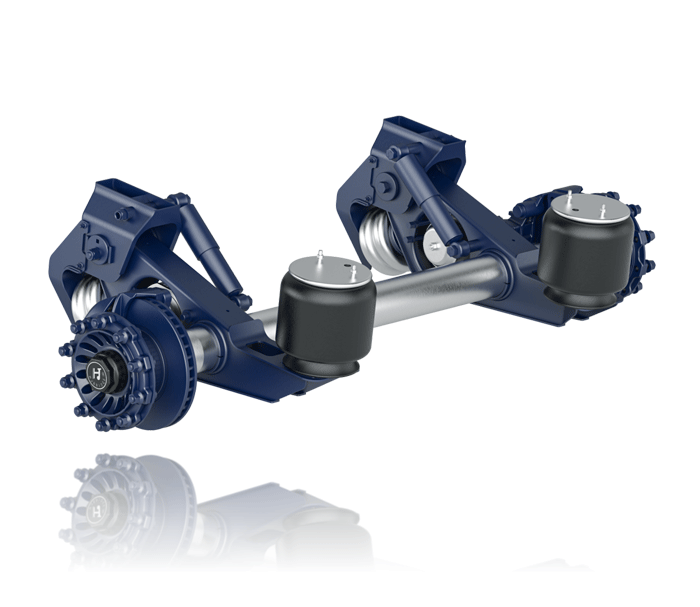

Model:3090007Name:9T high bed lightweight disc brake suspensionSpecification:G10A1A0/254R/GE/432Technical SpecificationsFrame height R.H (mm)：432 (395-450 )Approved load (kg)：10400Suspension center distance FM (mm)：920Airbag center distance BM (mm)：860（V=30）Bracket height ST (mm)：254Airbag diameter (mm)：Φ350Installation plate thickness (mm)：8Travel distance (mm)：200
-
Model:3090008Name:9T high bed lightweight disc brake suspensionSpecification:G10A1A0/305R/GE/483Technical SpecificationsFrame height R.H (mm)：483 (460-510)Approved load (kg)：10400Suspension center distance FM (mm)：920Airbag center distance BM (mm)：860（V=30）Bracket height ST (mm)：305Airbag diameter (mm)：Φ350Installation plate thickness (mm)：68Travel distance (mm)：200
-

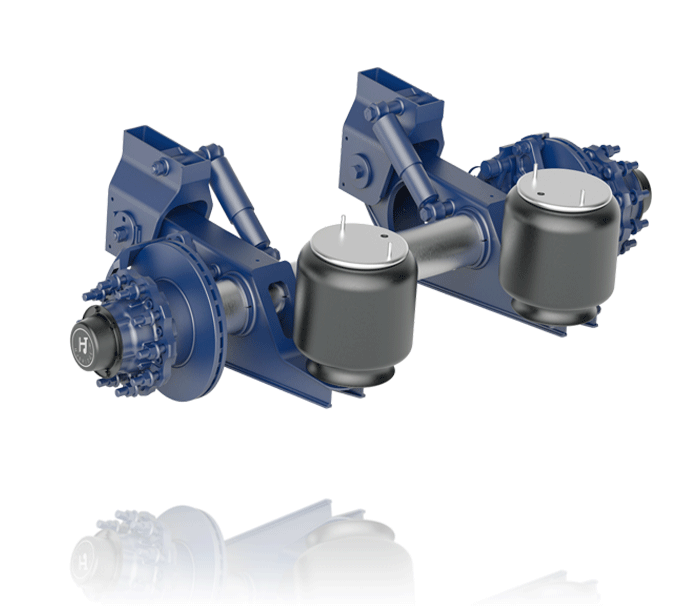

Model:3090009Name:9T low bed lightweight disc brake suspensionSpecification:G10A1A0/203R/DE/250Technical SpecificationsFrame height R.H (mm)：250(230-280)Approved load (kg)：10400Suspension center distance FM (mm)：920Airbag center distance BM (mm)：860（V=30）Bracket height ST (mm)：203Airbag diameter (mm)：Φ350Diameter of airbag (mm)：8Travel distance (mm)：190
-
Model:3090010Name:9T low bed lightweight disc brake suspensionSpecification:G10A1A0/254R/DE/280Technical SpecificationsFrame height R.H (mm)：280 (250-310)Approved load (kg)：10400Suspension center distance FM (mm)：920Airbag center distance BM (mm)：860（V=30）Height ST (mm)：254Airbag diameter (mm)：Φ350Installation plate thickness (mm)：8Travel distance (mm)：190
-
Model:3090011Name:9T low bed lightweight disc brake suspensionSpecification:G10A1A0/305R/DE/330Technical SpecificationsFrame height R.H (mm)：330(310-360)Approved load (kg)：10400Suspension center distance FM (mm)：920Airbag center distance BM (mm)：860（V=30）Bracket height ST (mm)：305Airbag diameter (mm)：Φ350Installation plate thickness (mm)：50Travel distance (mm)：190
-

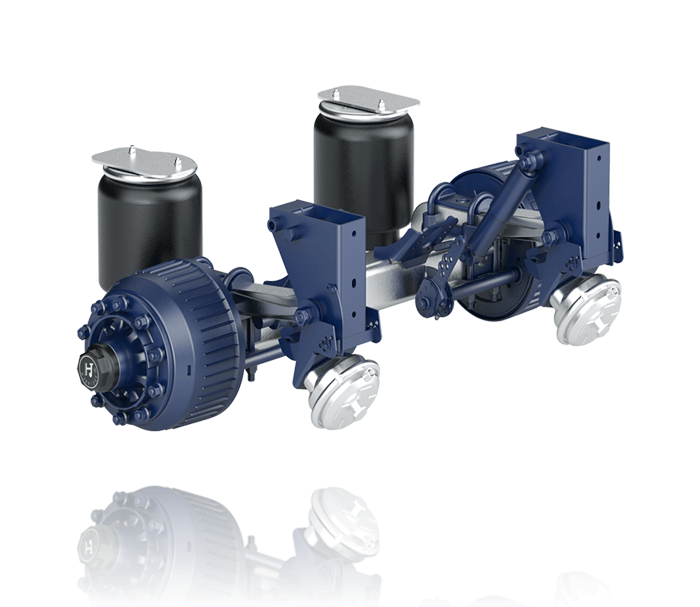

Model:3090012Name:10-12T European standard drum brake suspensionSpecification:10/121200FETechnical SpecificationsFrame height R.H (mm)：340-400Approved load (kg)：10000/12000Suspension center distance FM (mm)：900/1200Axle Track (mm)：1840/2040Bracket height ST (mm)：200Airbag diameter (mm)：Φ360Axis tube size (mm)：□150/○127
