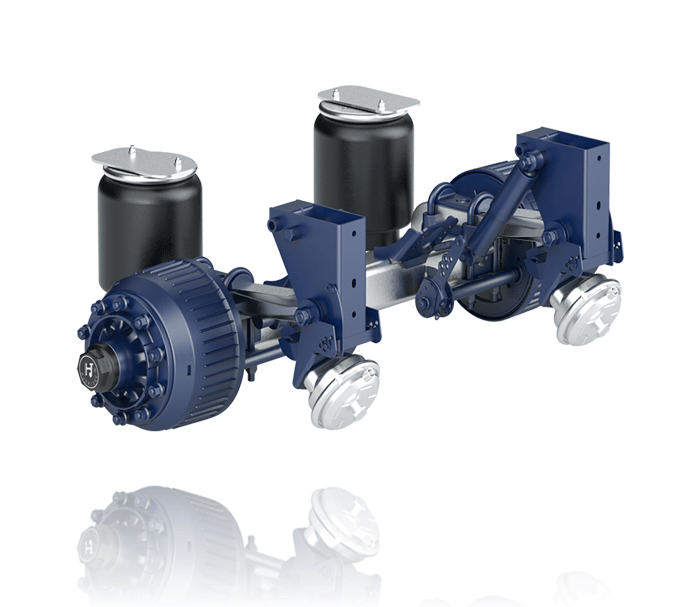

Model:3090013

Name:10-12T European standard drum brake suspension

Specification:10/121268FE

Technical Specifications

Frame height R.H (mm)：395-445

Approved load (kg)：10000/12000

Suspension center distance FM (mm)：900/1200

Axle Track (mm)：1840/2040

Bracket height ST (mm)：268

Airbag diameter (mm)：Φ360

Axis tube size (mm)：□150/○127
Model:3090014

Name:10-12T European standard drum brake suspension

Specification:10/12/308FE

Technical Specifications

Frame height R.H (mm)：435-485

Approved load (kg)：10000/12000

Suspension center distance FM (mm)：900/1200

Axle Track (mm)：1840/2040

Bracket height ST (mm)：308

Airbag diameter (mm)：Φ360

Axis tube size (mm)：□150/○127
Model:3090015

Name:10-12T European standard drum brake suspension

Specification:10/12/328FE

Technical Specifications

Frame height R.H (mm)：455-505

Fixed load (kg)：10000/12000

Suspension center distance FM (mm)：900/1200

Axle Track (mm)：1840/2040（V=30）

Bracket height ST (mm)：328

Airbag diameter (mm)：Φ360

Axis tube size (mm)：□150/○127
Model:3090016

Name:10-12T European standard drum brake suspension

Specification:10/12/368FE

Technical Specifications

Frame height R.H (mm)：495-545

Approved load (kg)：10000/12000

Suspension center distance FM (mm)：900/1200

Axle Track (mm)：1840/2040

Bracket height ST (mm)：368

Airbag diameter (mm)：Φ360

Axis tube size (mm)：□150/○127
